OFX-4048:
8-Way Fibre Optic Splitter. | ||
FEATURES:
|
||
GENERAL:
|
||
The OFX-4048 is an optical splitter suitable for use with IRT's complete range of optical fibre
transmitters comprising of HD, SD, ASI, L-Band or analogue signals. | ||
TECHNICAL SPECIFICATIONS:
|
||
Type |
8-way equal optical splitter. |
Wavelengths |
CWDM range - 1260nm to 1650nm. |
Fibre |
Single mode. |
Connector type |
SC/PC. |
Insertion loss |
< 10.5 dB. |
Other: |
|
Temperature range |
0 - 50°C ambient. |
Mechanical |
Suitable for mounting in IRT 19"
1RU or 4000 series 3RU rack chassis with input and output connections on the rear panel. |

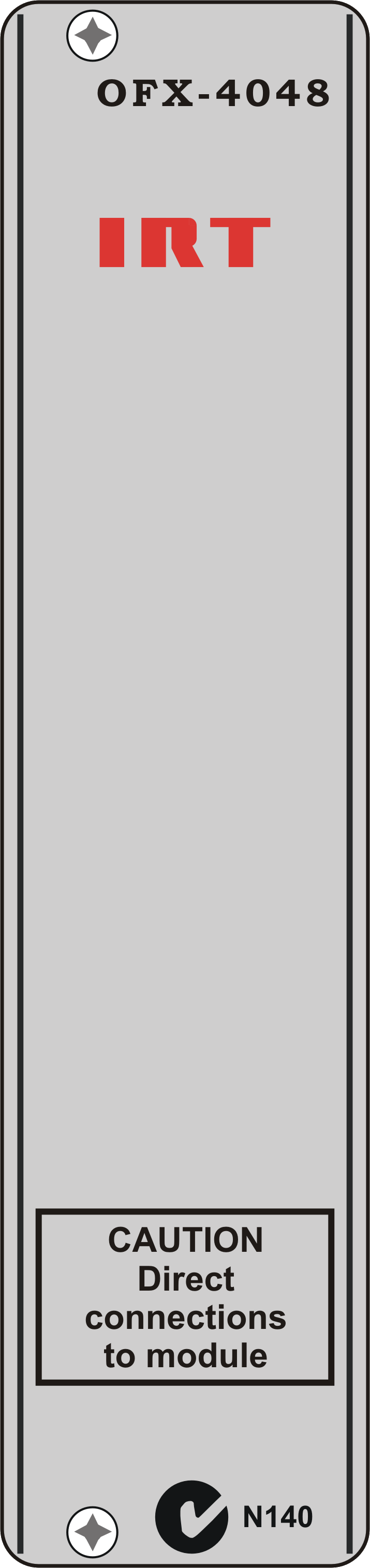

Finish: Front panel |
Grey background, black lettering & red IRT logo. |

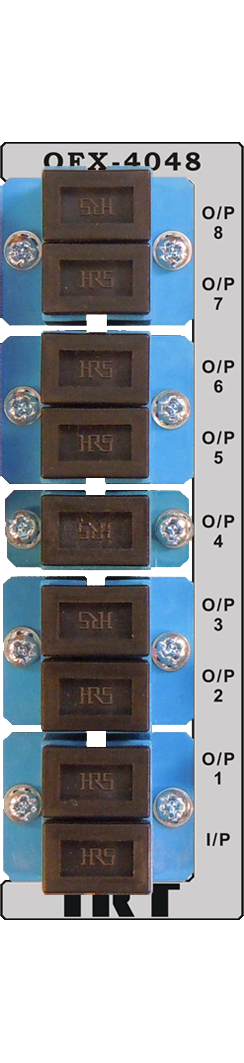

Rear assembly |
Detachable silk-screened PCB with direct mount connectors to Eurocard and external signals. |
Dimensions |
6 HP x 3 U x 220 mm IRT Eurocard. |
![]() ![]() |
Due to our policy of continuing development, these specifications are subject to change without notice.
|
