OFX-4044:   4-Way Fibre Optic Splitter.

FEATURES:

      25/25/25/25 optical splitter.
      Operates in the full CWDM wavelength range.
      Suitable for all signal types.
      No power required - totally passive.
      Connections made by SC/PC connectors.

Brochure

User Manual

GENERAL:

The OFX-4044 is an optical splitter suitable for use with IRT's complete range of optical fibre transmitters comprising of HD, SD, ASI, L-Band or analogue signals.

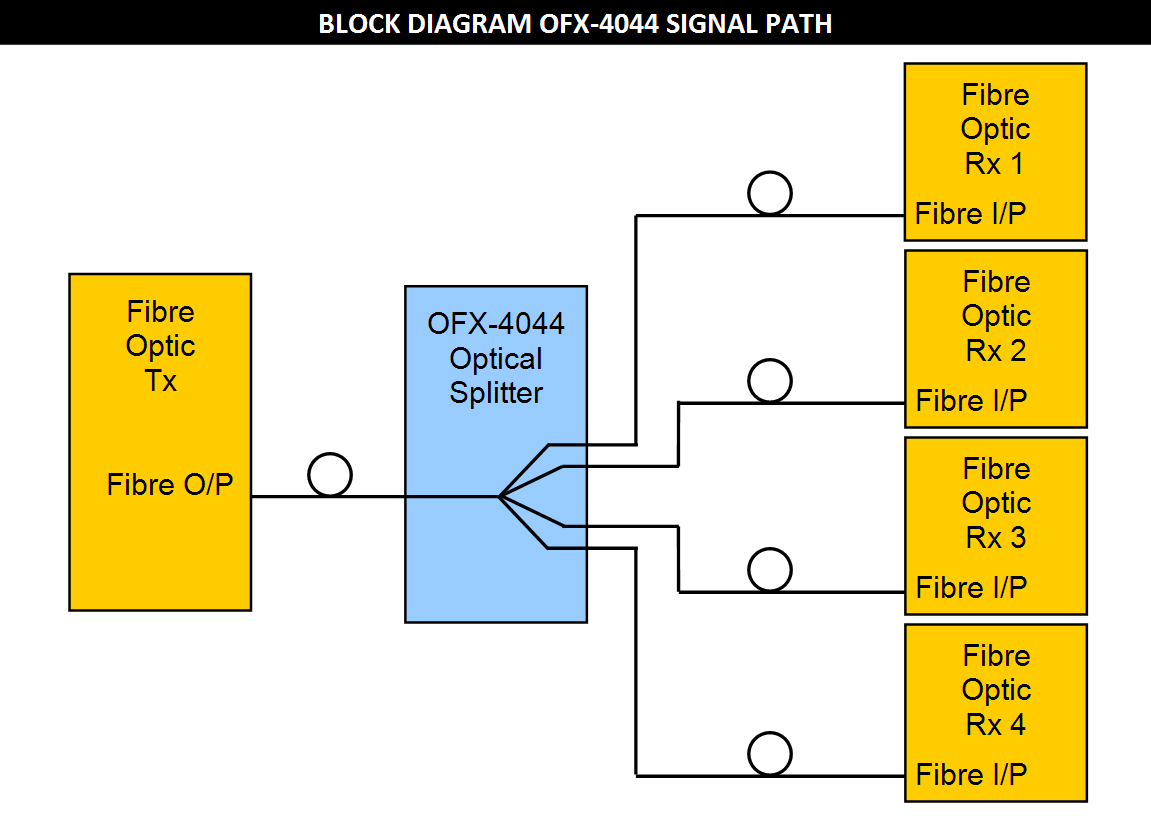

The input optical signal is split equally between outputs allowing four optical receivers to be fed by the one optical transmitter. This allows either four separate locations to receive the input signal optically via the one source, or allows optical fibre redundancy by sending via different paths.

The OFX-4044 is a passive unit that requires no power to operate and is designed to mount in IRT's standard 1RU and 4000 series 3RU frames.


TECHNICAL SPECIFICATIONS:

Type
25/25/25/25 optical splitter.
Wavelengths
CWDM range - 1260nm to 1650nm.
Fibre
 Single mode.
Connector type
 SC/PC.
Insertion loss
 < 7.6 dB.

Other:
Temperature range
0 - 50°C ambient.
Mechanical
Suitable for mounting in IRT 19" 1RU or 4000 series 3RU rack chassis with input and output connections on the rear panel.

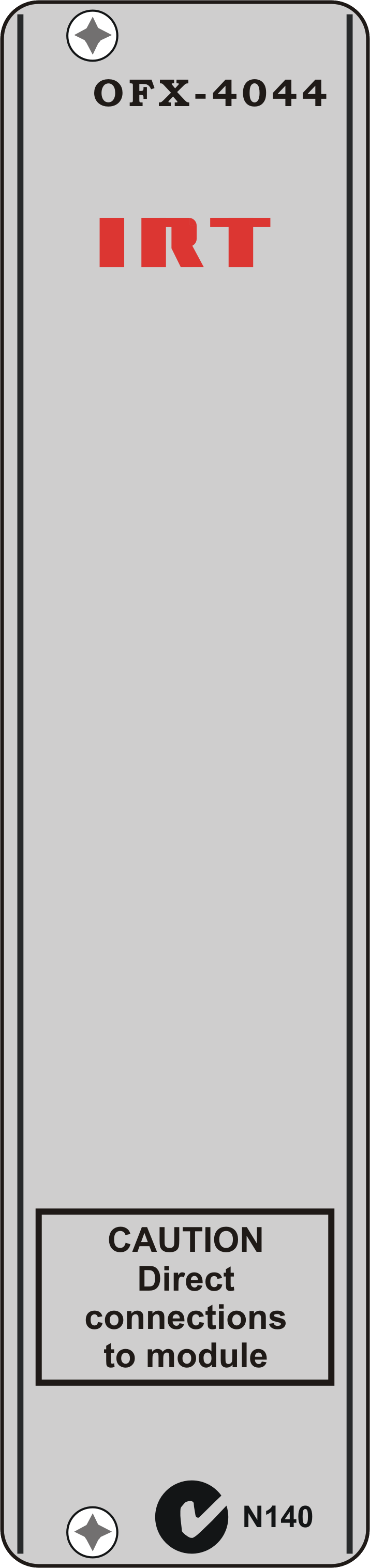

Finish:             Front panel
Grey background, black lettering & red IRT logo.

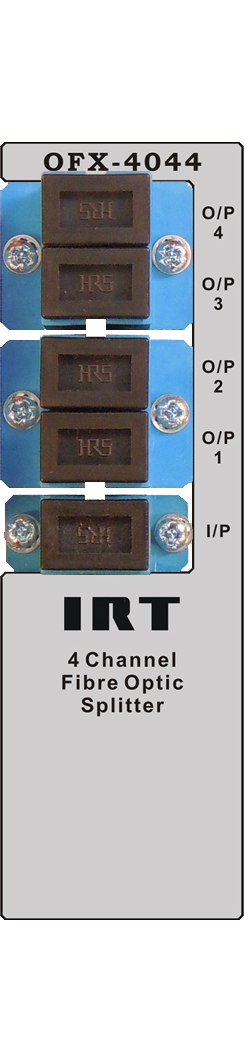

                       Rear assembly
Detachable silk-screened PCB with direct mount connectors to Eurocard and external signals.
Dimensions
6 HP x 3 U x 220 mm IRT Eurocard.






Due to our policy of continuing development, these specifications are subject to change without notice.
