OFM-4262:
2 Channel WDM Fibre Optic Multiplexer/Demultiplexer. | ||
FEATURES:
|
||
GENERAL:
|
||
The OFM-4262 is wave division optical wavelength division multiplexer / demultiplexer (WDM)
for combining and separating two optical signals of 1260-1360nm (typically 1310nm) and 1460-1620nm (typically 1550nm) wavelengths for either
uni directional or bi directional transmission on the one fibre. | ||
TECHNICAL SPECIFICATIONS:
|
||
Type |
WDM multiplexer / demultiplexer. |
Wavelengths |
1260-1360 nm & 1460-1620 nm. |
Fibre |
Single mode. |
Connector Type |
SC/PC. |
Insertion Loss |
< 0.5 dB @ 1550 nm. |
< 0.5 dB @ 1310 nm. | |
Isolation |
> 20 dB. |
Other: |
|
Temperature range |
0 - 50°C ambient. |
Mechanical |
Suitable for mounting in IRT 19" 1RU or 4000 series
3RU rack chassis with input and output connections on the rear panel. |

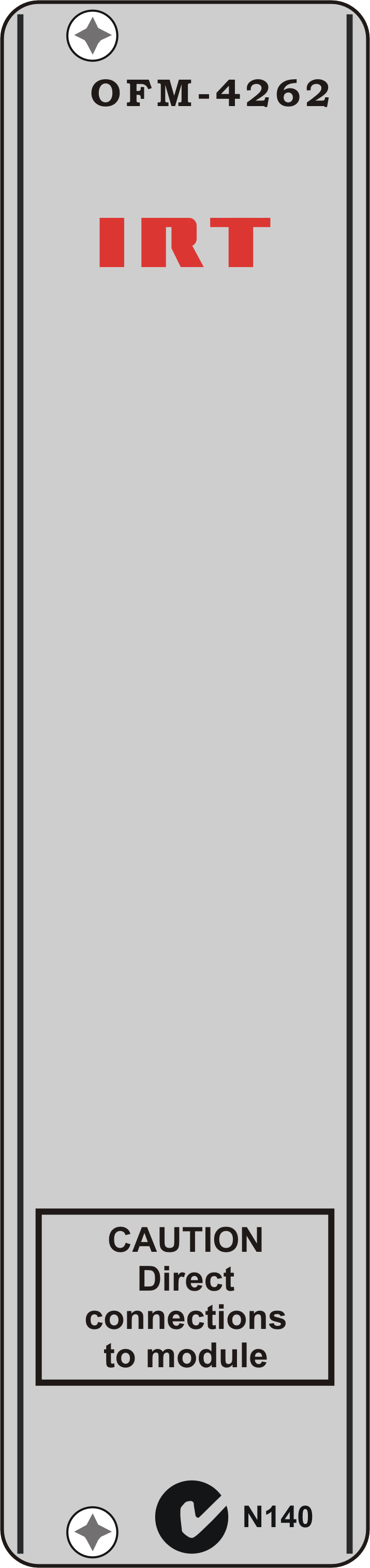

Finish: Front panel |
Grey background, black lettering & red IRT logo. |

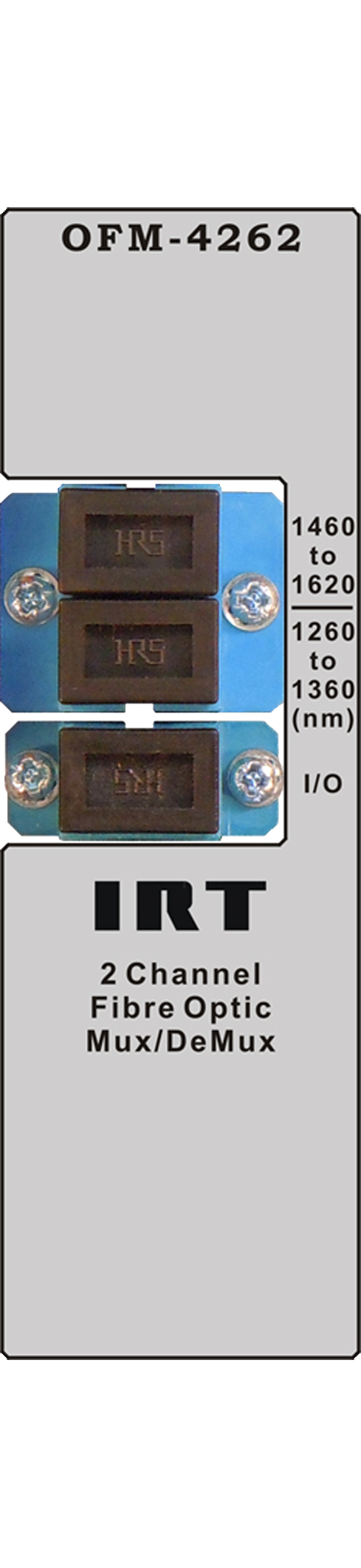

Rear assembly |
Common connection mounted on bracket from main PCB. |
Dimensions |
6 HP x 3 U x 220 mm IRT Eurocard. |
![]() ![]() |
Due to our policy of continuing development, these specifications are subject to change without notice.
|
