MiniLinx-1010:

Multi-Channel 12G/6G/3G/HD/SD/ASI Desktop Router, Switcher, Distribution Amplifier and Fibre Optic Link

FEATURES:

Brochure

User Manual

Portable - Desktop mount.

6 independent 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI or ASI BNC I/O ports.

Suitable for 4K/UHD video.

6 independent SFP I/O ports.

Route any input to any output.

Can be setup as a Router, Switcher, Distribution Amplifier, Signal Converter1,2 or Multiple Fibre Optic Links1,2.

Two DC supply inputs for power supply redundancy.

Web Browser monitoring and control.


GENERAL:

The MiniLinx-1010 is a portable Multi-Channel Router, Switcher, Distribution Amplifier, Signal Converter1,2 or Multiple Fibre Optic Links1,2 for up to six serial data video signals at 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI or SD-SDI rates.

In addition, the MiniLinx-1010 may be used for ASI transport streams for use with MPEG compressed video streams, or other 270 Mb/s type data.

The MiniLinx-1010 conforms to SMPTE standards 2082-1, 2081-1, 424M, 292M and 259M-C for digital video signals, as well as the DVB standard for ASI.

Six BNC video ports act as either inputs or outputs as set via the front panel control switches, or a web based browser control via its front panel Ethernet monitor/control port.

Up to six SFP's of either single transmitter, single receiver or transceiver (transmit + receive) types may be fitted allowing for expansion as needed. Both MSA and non-MSA SFP's may be used. SFP ports2 act as either inputs or outputs depending upon what type of SFP is fitted.

In addition to video fibre link SFP's, the SFP ports will allow third party signal conversion SFP's, such as SPMTE-2022 video to Ethernet, MADI audio, HDMI/SDI converters, etc., to be fitted.

Any input may be switched to any output. This also includes any plugged in SFP's. Thus the MiniLinx-1010 can be configured as a Mini-Router, a Switcher, a Distribution Amplifier, a Signal Converter1,2, or Multiple Fibre Optic Links1,2.

Power is supplied by an external +12Vdc power supply, with a secondary external +12Vdc input port provided for power supply redundancy.

Monitoring is possible locally via the front panel display or remotely via a web browser.
NOTE:
1
Signal conversion is only possible with the correct desired SFP fitted.
2
MiniLinx-1010 does not come with SFP's as standard. SFP's sold separately.

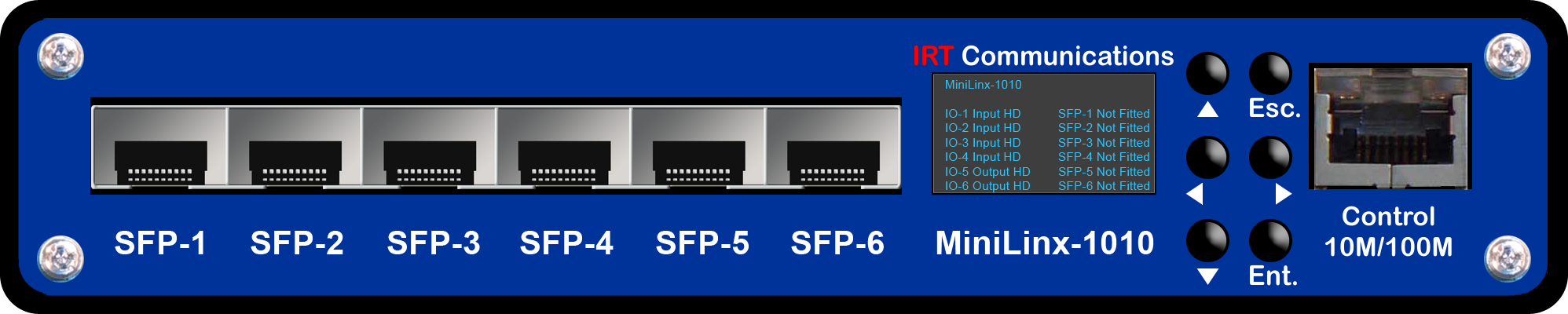

MiniLinx-1010 Front Panel.


MiniLinx-1010 Rear Panel.

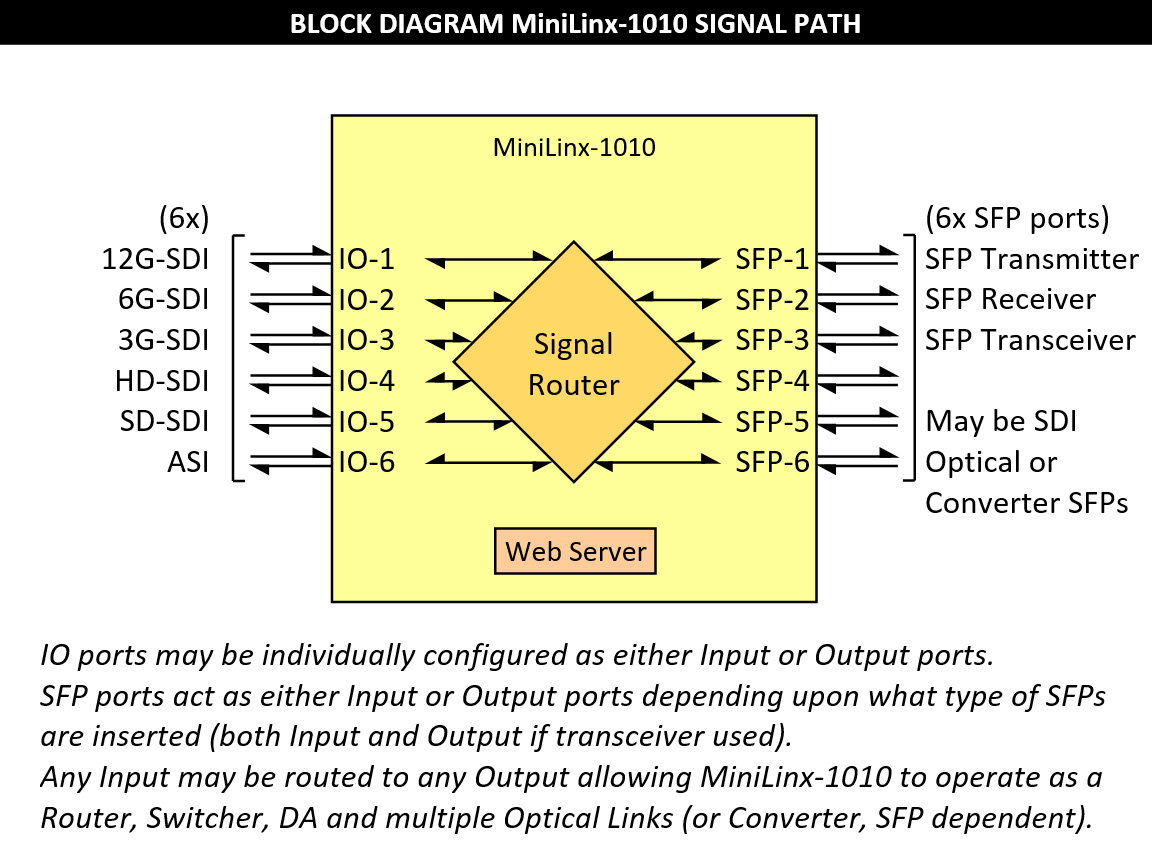

BLOCK DIAGRAM:




TECHNICAL SPECIFICATIONS:    (Preliminary)
BNC Ports:
Configurable individually as either Inputs or Outputs.
Input/Output serial data signal
11.88 Gb/s (12G-SDI) to SMPTE 2082-1;
5.94 Gb/s (6G-SDI) to SMPTE 2081-1;
2.97 Gb/s (3G-SDI) to SMPTE 424M;
1.485 Gb/s (HD-SDI) to SMPTE 292M;
270 Mb/s (SD-SDI) to SMPTE 259M-C and DVB-ASI.
Input/Output Impedance
75 Ω.
Input/Output Return Loss
> 15 dB 5 MHz to 1.5 GHz;
> 10 dB 1.5 GHz to 2.97 GHz.
Automatic Cable Compensation
> 40m at 11.88 Gb/s (12G-SDI) with RG6/U;
> 80m at 5.94 Gb/s (6G-SDI) with RG6/U;
> 100 m at 2.97 Gb/s (3G-SDI) with Belden 1694A;
> 100 m at 1.485 Gb/s (HD-SDI) with Belden 1694A;
> 250 m at 270 Mb/s (SD-SDI/ASI) with Belden 8281.
Output Level
800 mV ± 10%.
Output Rise and Fall Time
< 135 ps at 2.97 Gb/s and 1.485 Gb/s;
> 0.4 ns and < 1.5 ns at 270 Mb/s.
Intrinsic Jitter
< 0.3 UI at 2.97 Gb/s reclocked;
< 0.2 UI at 1.485 Gb/s reclocked;
< 0.1 UI at 270 Mb/s reclocked.
I/O Connector
6 x BNC on rear panel.

SFP Ports:
Qty
6 on front panel, act as inputs or outputs depending upon function of SFP inserted.
Type
MSA or Non-MSA.
SFP Functionality
Primarily intended for use with single Optical Transmitters, single Optical Receivers and Optical Transceivers. Also suitable for SDI converter SFPs.

Power Requirements:
Voltage
+ 12 Vdc.
Power consumption
< 20VA.

Other:
Temperature range
0 - 50°C ambient.
Dimensions
169 x 30.5 x 165 mm.

Ordering:
MiniLinx-1010
Multi-Channel 12G/6G/3G/HD/SD/ASI Desktop Router, Switcher, Distribution Amplifier with SFP ports and single 12V power pack. SFP modules sold separately.
SFP3GRX-APD
3G3 SFP non-MSA APD detector.
SFP3GRX-PIN
3G3 SFP non-MSA PIN detector.
SFP3GTX-Dxxxx
3G3 SFP non-MSA DFB laser transmitter where the required wavelength5 is substituted for xxxx.
SFP3GTR-Dxxxx-APD
3G3 SFP non-MSA APD transceiver where the required wavelength5 is substituted for xxxx.
SFP3GTR-Dxxxx-PIN
3G3 SFP non-MSA PIN transceiver where the required wavelength5 is substituted for xxxx.
SFP12GRX-PIN
12G4 SFP non-MSA PIN detector.
SFP12GTX-Dxxxx
12G4 SFP non-MSA DFB laser transmitter where the required wavelength5 is substituted for xxxx.
SFP12GTR-Dxxxx-PIN
12G4 SFP non-MSA PIN transceiver where the required wavelength5 is substituted for xxxx.

NOTE:
3
3G SFP suitable for 3G-SDI, HD-SDI, SD-SDI and ASI applications.
4
12G SFP suitable for 12G-SDI, 6G-SDI,3G-SDI, HD-SDI, SD-SDI and ASI applications.
5
Replace xxxx in part number with 1 of 18 desired CWDM wavelengths in nanometres (nm):
xxxx = 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590 or 1610. For example, SFP3GTX-D1550 is a single laser transmitter fitted with a 1550nm DFB laser.




Due to our policy of continuing development, these specifications are subject to change without notice.
