IRT-6400-DAA:   AES/EBU Distribution Amplifier

FEATURES:

      Dual 1x4 or 1x8 outputs.
      Choice of 75 or 110 Ohm inputs and outputs by changing rear connector
         assembly.
      All inputs and outputs transformer coupled.
      Digital circuit re-shapes output and restores level.
      Selectable resampling to alternate input or local reference.
      No cable compensation adjustments required.
      DashBoard™ software monitoring and control.

Brochure

User Manual

GENERAL:

The IRT-6400-DAA is designed to provide a solution to most AES/EBU digital audio signal distribution requirements.

A choice of rear assembly is available for either 110 Ohm or 75 Ohm use.

The IRT-6400-DAA can be configured as either a single 1x8 DA or a dual independent 1x4 DA.

The IRT-6400-DAA will operate at AES sample rates from 34 to 54 kHz and may be used with non-AES digital signals that have a net zero DC content. When operating in the 1x8 mode, the alternate input can be used as a reference to which the incoming AES audio can be resampled. An internal reference can be applied to either channel to resample to 48KHz.

The IRT-6400-DAA is designed to fit the openGear® standard 2RU frames which allow a mixture of cards from various manufacturers to be mounted within the same frame.

The DashBoard™ control software is available as a free download.



TECHNICAL SPECIFICATIONS:

Inputs:
Number
2.
Type
110 Ω balanced;
or
75 Ω unbalanced.
Selected by link on PCB.

Format
AES3-1992 standard.
Input level
 200 mVp-p minimum.
Cable length
 > 500 m 75 Ω (Belden 8281).
> 200 m 110 Ω (AES digital high quality shielded pair).

Outputs:
Number
8 (2 banks of 4 outputs).
Type
(standard) 110 Ω balanced > 3 Vp-p;
or
(optional) 75 Ω unbalanced > 1 Vp-p.
Format
AES3-1992 standard.

Performance:
AES sample rate
34 to 54 kHz continuous.
Resampled
34 to 54 KHz reference input or 48Khz internal reference.
Rise & fall times
< 20 ns.

Connectors:
Balanced
Phoenix 3 terminal plug-in blocks.
Unbalanced
BNC.

Power Requirements:
Voltage
+ 12 Vdc.
Power consumption
< 2.4 VA.

Other:
Temperature range
0 - 50°C ambient.
Mechanical
Suitable for mounting in an openGear® 2RU rack chassis.
Dimensions (openGear® standard)
33.6 mm x 2U x 325 mm.

Supplied accessories
Rear connector assembly.

Ordering
IRT-6400-DAA
IRT-6400-DDA, programmed with DashBoard™ control + rear assembly.

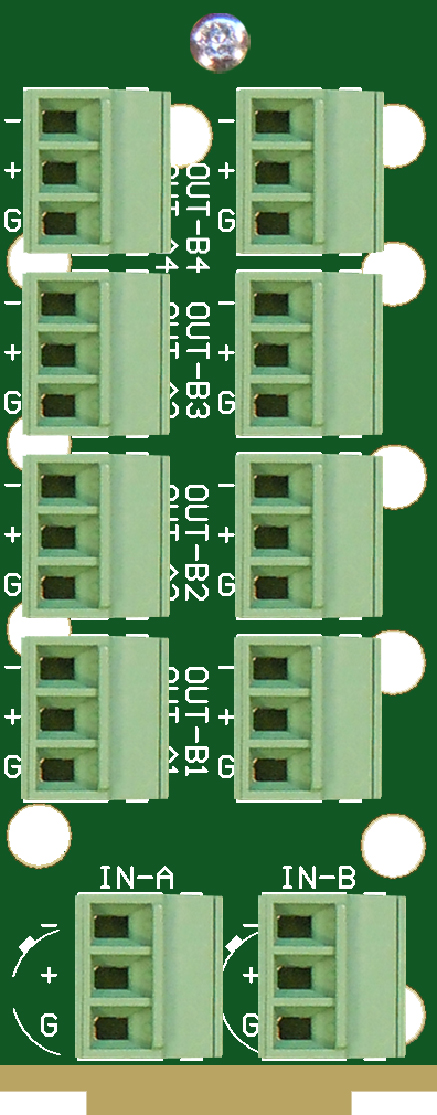

IRT-6400-BAL
Rear Assembly - 110 Ω balanced inputs and outputs.

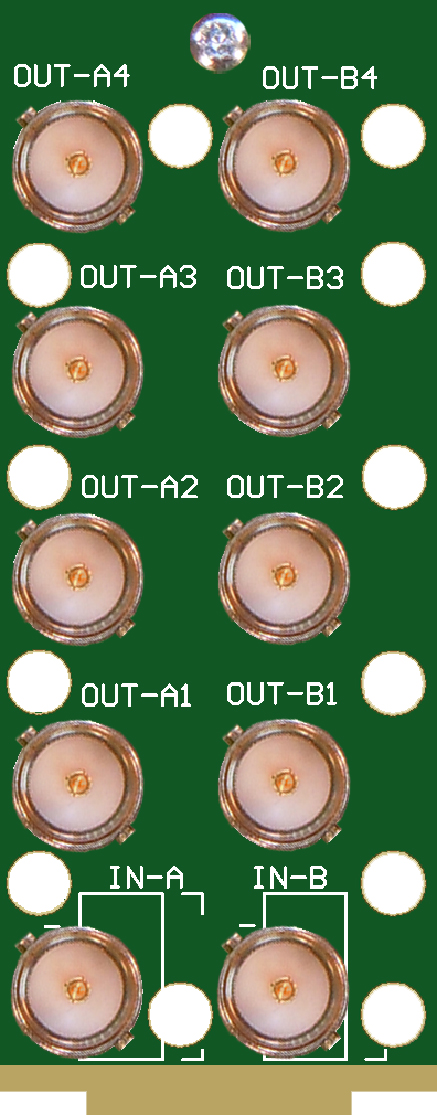

IRT-6400-UBAL
Rear Assembly - 75 Ω unbalanced inputs and outputs.

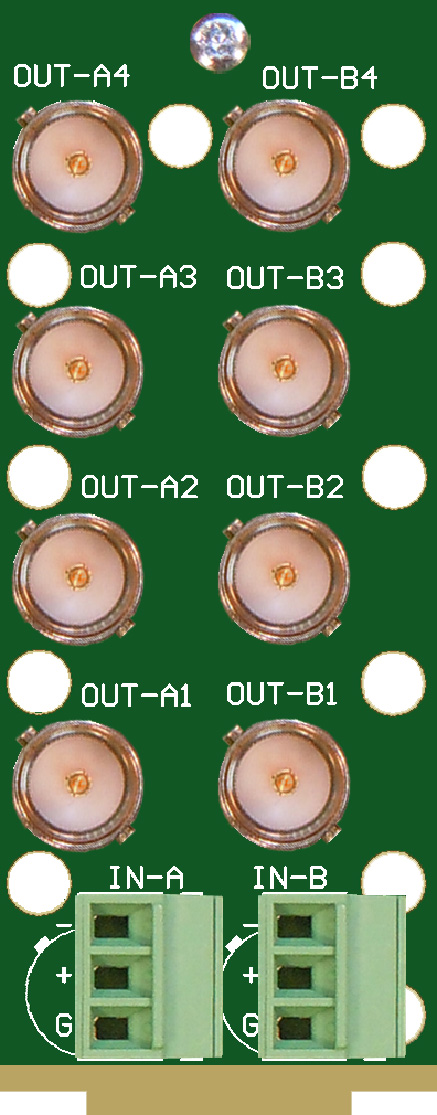

IRT-6400-BAL+UBAL
Rear Assembly - 110 Ω balanced inputs and 75 Ω unbalanced outputs.

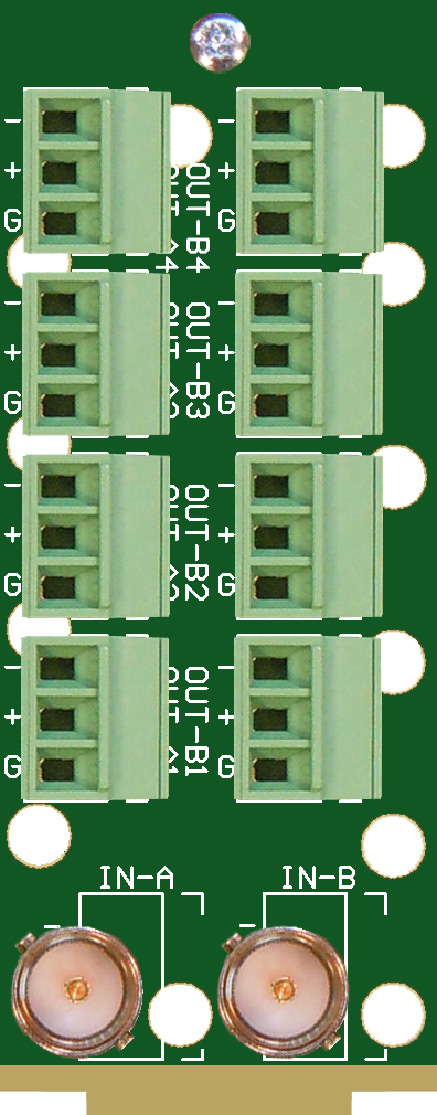

IRT-6400-UBAL+BAL
Rear Assembly - 75 Ω unbalanced inputs and 110 Ω balanced outputs.





      IRT-6400-BAL                          IRT-6400-UBAL                      IRT-6400-BAL+UBAL                 IRT-6400-UBAL+BAL
Due to our policy of continuing development, these specifications are subject to change without notice.
