IRT-6200-DAX:   3G/HD/SD-SDI Audio Extractor


      Standard 75 Ohm 3G/HD/SD-SDI video input and outputs.
      Supports all video line and frame rate standards.
      Extracts audio signals from 2 selectable groups - either:
            Four 110 Ohm balanced (or optionally four 75 Ohm unbalanced) AES outputs,
            Eight high quality analogue audio outputs.
      Selectable tone generator on audio outputs for audio test alignment signals.
      Cascadable - Two SDI outputs for connection to additional units.
      DashBoard™ software monitoring and control.


User Manual


The IRT-6200-DAX is a high performance embedded audio extractor for either 2.97 Gb/s 3G‑SDI, 1.485 Gb/s HD-SDI or 270 Mb/s SD-SDI video signals. It is primarily designed to operate with IRT's IRT-6200-DAI digital audio inserter but will work on any embedded SDI source.

A typical SDI signal may contain up to eight audio pairs arranged in four groups. Each IRT-6200-DAX is capable of extracting two audio groups (X&Y) from those available. Selection is made via on board DIP switches.

The IRT-6200-DAX standard rear assembly is fitted with four balanced AES outputs. An analogue version rear assembly is available for outputting balanced analogue audio outputs.

A selectable tone generator with multiple frequency test tones and levels is provided allowing for audio system setup alignment. These appear on the audio outputs, when selected.

The IRT-6200-DAX is cascadable with two SDI outputs being provided.

The IRT-6200-DAX is designed to fit the openGear® standard 2RU frames which allow a mixture of cards from various manufacturers to be mounted within the same frame.

The DashBoard™ control software is available as a free download.

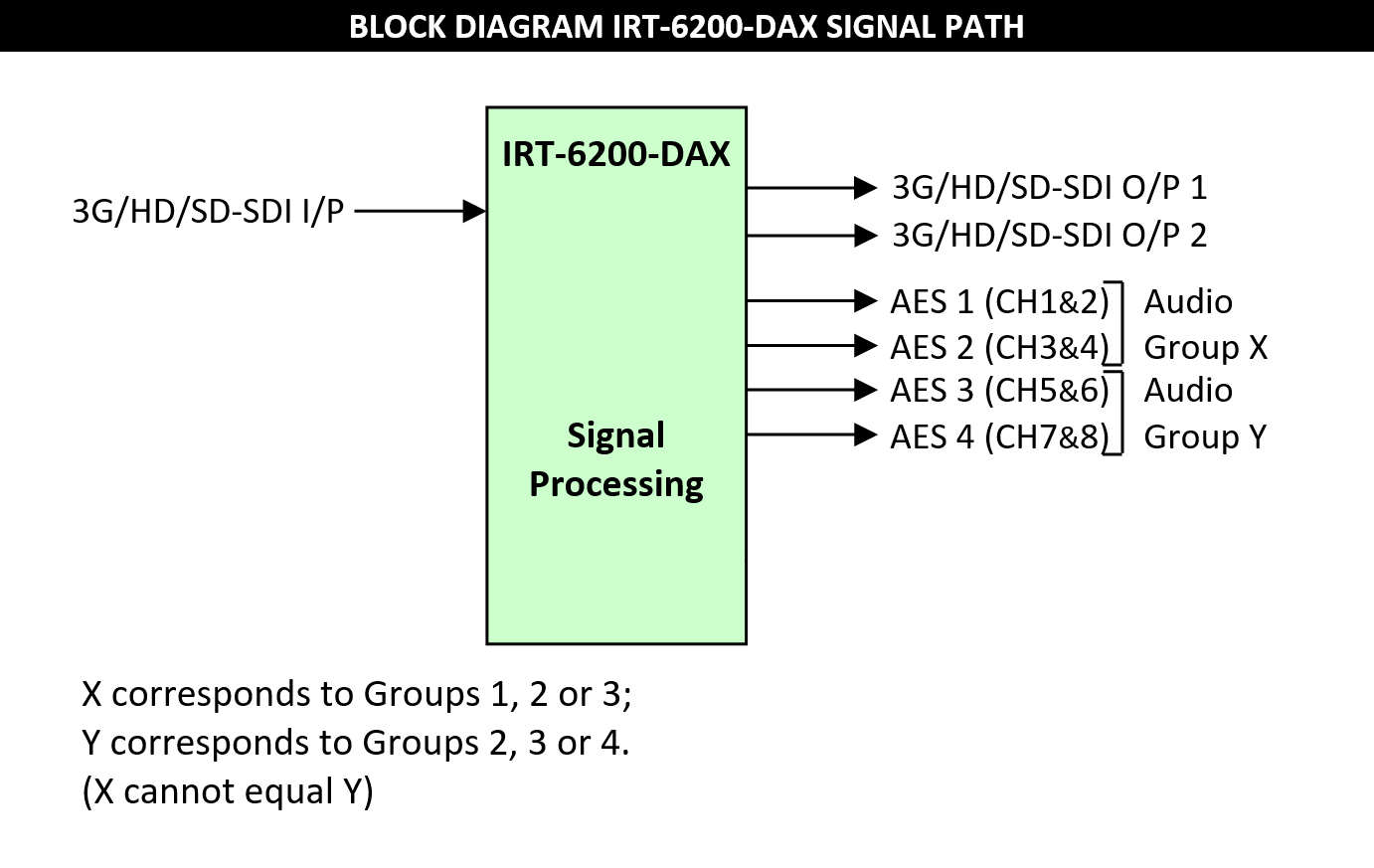

NOTE:      X corresponds to Groups 1, 2 or 3;
                Y corresponds to Groups 2, 3 or 4
                (X cannot equal Y).


SDI Input:
1 (BNC).
75 Ω terminated.
Equalisation        Automatic
>100 metres at 1.485 Gb/s & 2.97 Gb/s,
> 250 metres at 270 Mb/s for Belden 8281 or equivalent cable.
270 Mb/s (SD-SDI) video with or without embedded audio serial data to SMPTE 259M; or
1.485 Gb/s (HD-SDI) video with or without embedded audio serial data to SMPTE 292M; or
2.97 Gb/s (3G-SDI) video1 with or without embedded audio serial data to SMPTE 424M.

SDI Output:
2 (BNC).
75 Ω sourced.
Regenerated and re-clocked, as per input type..

AES/EBU Outputs Rear Assembly Option (Standard):
4 (2 Groups).
Impedance (balanced)
110 Ω balanced.
Signal Amplitude
3.5V ± 1Vp-p (standard balanced rear assembly);
(1Vp-p optional unbalanced BNC rear assembly).
Audio pair Group X2
AES 1 & AES 2.
Audio pair Group Y2
AES 3 & AES 4.

Analogue Audio Inputs Rear Assembly Option:
8 (2 Groups).
< 60 Ω balanced.
Output Level
+24 dBu at Full Scale.
SNR unweighted
90 dBFS.
Frequency Response
0.5 dB (20 Hz to 20 kHz).
0.05% (20 Hz to 20 kHz).
0.05% SMPTE at +4 dBu.
Crosstalk between channels
95 dB, at unity gain, 20 Hz to 20 kHz and relative to +24 dBu.
Audio pair Group X2
Audio Left 1 (CH1), Audio Right 1 (CH2), Audio Left 2 (CH3) & Audio Right 2 (CH4).
Audio pair Group Y2
Audio Left 3 (CH5), Audio Right 3 (CH6), Audio Left 4 (CH7) & Audio Right 4 (CH8).

AES Rear Assembly
4 x 3-pin Phoenix pluggable screw block.
Analogue Audio Rear Assembly
4 x 5-pin Phoenix pluggable screw block.

Power Requirements:
+ 12 Vdc.
Power consumption
< 8 VA.

Temperature range
0 - 50°C ambient.
Suitable for mounting in an openGear® 2RU rack chassis.
Dimensions (openGear® standard)
33.6 mm x 2U x 325 mm.

Supplied accessories
Rear connector assembly.

IRT-6200-DAX with balanced AES outputs, programmed with DashBoard™ control.
IRT-6200-DAX with unbalanced AES outputs, programmed with DashBoard™ control.
IRT-6200-DAX with Analogue Audio outputs, programmed with DashBoard™ control.

Related Modules
IRT-6200-DAI digital audio inserter.

Works at 3GA 1080p50 and 1080p60 rates.
X corresponds to Groups 1, 2 or 3
Y corresponds to Groups 2, 3 or 4
(X cannot equal Y).


IRT-6200-DAX                          IRT-6200-DAX/A

Due to our policy of continuing development, these specifications are subject to change without notice.
