IRT-6200-DAI

SDI Input:
Number	1 (BNC).
Impedance	75 Ω terminated.
Equalisation Automatic	>100 metres at 1.485 Gb/s & 2.97 Gb/s, > 250 metres at 270 Mb/s for Belden 8281 or equivalent cable.
Format	270 Mb/s (SD-SDI) video with or without embedded audio serial data to SMPTE 259M; or 1.485 Gb/s (HD-SDI) video with or without embedded audio serial data to SMPTE 292M; or 2.97 Gb/s (3G-SDI) video with or without embedded audio serial data to SMPTE 424M.

SDI Output:
Number	2 (BNC).
Type	75 Ω sourced.
Format	Regenerated and re-clocked, as per input type.

AES/EBU Inputs Rear Assembly Option (Standard):

Number	4 x 48 kHz synchronous / asynchronous, 24-bit audio data packets.
Impedance	110 Ω balanced.
1st Audio group (X)	AES 1 & AES 2.
2nd Audio group (Y)	AES 3 & AES 4.

Analogue Audio Inputs Rear Assembly Option:

Number	8.
Impedance	10 kΩ.
1st Audio group (X)	Audio Left 1 (CH1), Audio Right 1 (CH2), Audio Left 2 (CH3) & Audio Right 2 (CH4).
2nd Audio group (Y)	Audio Left 3 (CH5), Audio Right 3 (CH6), Audio Left 4 (CH7) & Audio Right 4 (CH8).

Connectors:

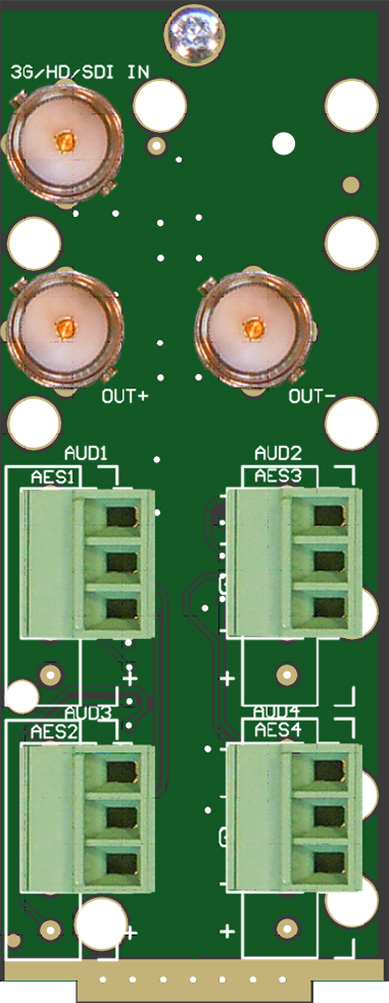

AES Rear Assembly	4 x 3-pin Phoenix pluggable screw block.

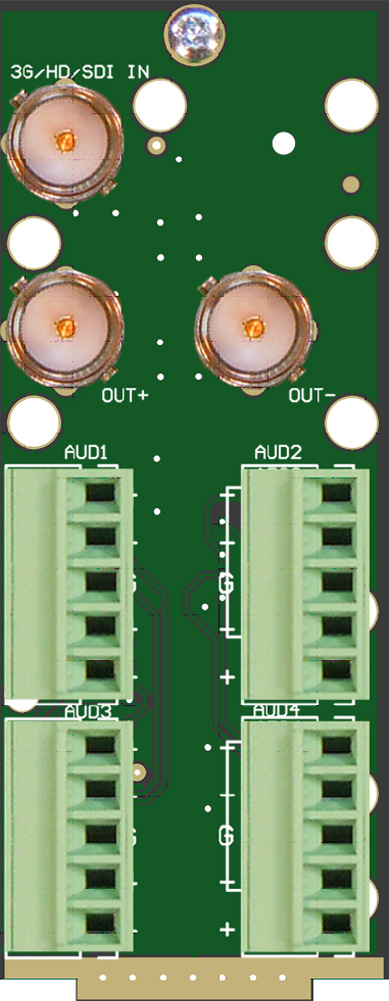

Analogue Audio Rear Assembly	4 x 5-pin Phoenix pluggable screw block.

Power Requirements:
Voltage	+ 12 Vdc.
Power consumption	< 8 VA.

Other:
Temperature range	0 - 50°C ambient.
Mechanical	Suitable for mounting in an openGear^® 2RU rack chassis.
Dimensions (openGear^® standard)	33.6 mm x 2U x 325 mm.

Supplied accessories	Rear connector assembly.

Ordering	IRT-6200-DAI	IRT-6200-DAI with AES inputs, programmed with DashBoard™ control.
	IRT-6200-DAI/A	IRT-6200-DAI with Analogue Audio inputs, programmed with DashBoard™ control.


Related Modules	IRT-6200-DAX digital audio extractor.

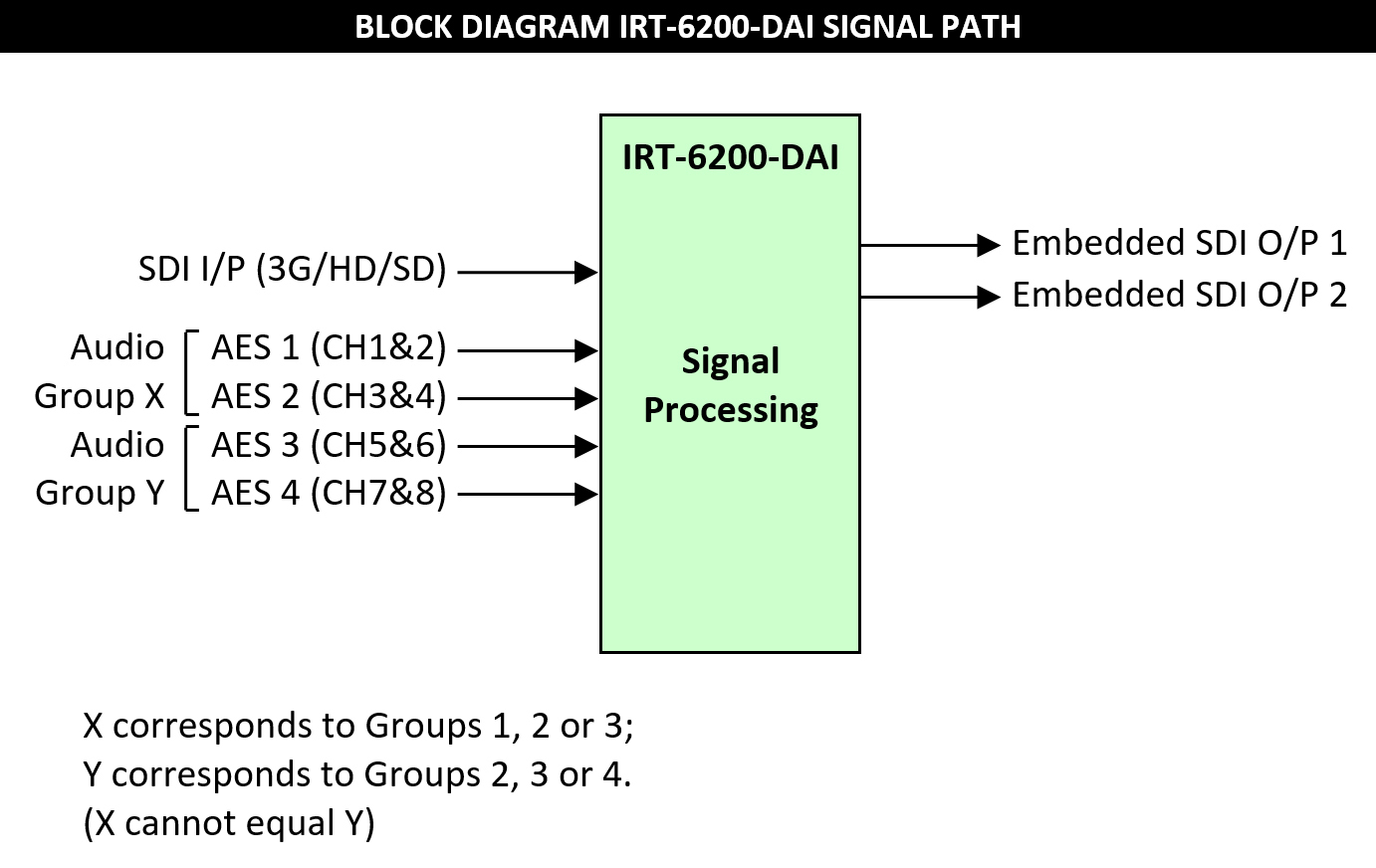

NOTE: X corresponds to Groups 1, 2 or 3;
Y corresponds to Groups 2, 3 or 4
(X cannot equal Y).

IRT-6200-DAI IRT-6200-DAI/A

Due to our policy of continuing development, these specifications are subject to change without notice.

IRT-6200-DAI: 3G/HD/SD-SDI Audio Inserter

FEATURES: Inserts up to 4 AES or 8 Analogue Audio signals into 2 groups. AES resampling. 24 bit audio supported. Z, C, U data preserved. Ability to replace existing embedded audio. Cascadable - SDI output for connection to additional units. DashBoard™ software monitoring and control.	Brochure	User Manual
GENERAL:
The IRT-6200-DAI is a high performance audio embedder for either 2.97 Gb/s 3G-SDI, 1.485 Gb/s HD-SDI or 270 Mb/s SD-SDI video signals. The IRT-6200-DAI is capable of inserting up to two audio groups into an existing SDI video stream. An audio group consists of either two AES signals or four analogue audio signals, thus either four AES signals or eight analogue audio signals are capable of being inserted over two audio groups. AES 1&2 constitute one audio group; AES 3&4 constitute the second audio group; or alternatively, Audio Left 1 (CH1), Audio Right 1 (CH2), Audio Left 2 (CH3) & Audio Right 2 (CH4) constitute one audio group; and Audio Left 3 (CH5), Audio Right 3 (CH6), Audio Left 4 (CH7) & Audio Right 4 (CH8) constitute the second audio group. Group position selection is made by on board DIP switches, or remotely via Dashboard™ software control. Existing embedded data packets may be either all removed or selectively replaced. The IRT-6200-DAI supports AES synchronous or asynchronous 48 kHz 24 bit audio data packet inputs. Embedded audio data packets are resampled to synchronise with the video stream. DIP switch settings allow colour black to SDI output on loss of SDI input. Two IRT-6200-DAI's can be cascaded for insertion of audio into all four groups if required. The IRT-6200-DAI is designed to fit the openGear® standard 2RU frames which allow a mixture of cards from various manufacturers to be mounted within the same frame. The DashBoard™ control software is available as a free download.
