IRT-6170-AAS:   Dual 4x1 / Single 7x1 Analogue Stereo / Digital Audio Switcher

FEATURES:

      Dual 4 x 1 or single 7 x 1 relay switch.
      Stereo or Balanced Inputs & Outputs.
      Latching relays.
      Optional Remote Control.
      DashBoard™ software monitoring and control.

Brochure

User Manual

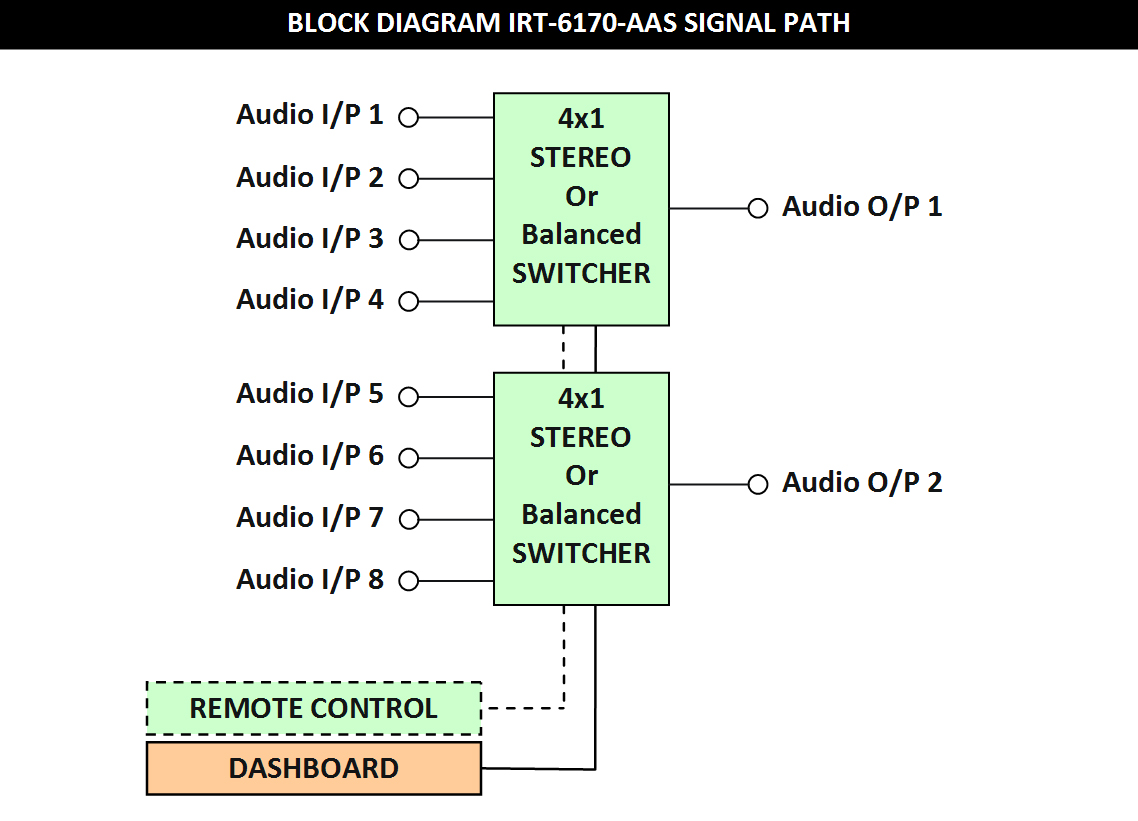

GENERAL:

The IRT-6170-AAS analogue stereo / digital audio switcher is part of a family of IRT openGear® switchers that may be linked and configured by the user to cover a wide range of switching and monitoring functions.

On board links allow the switcher to be configured for either dual 4x1 or single 7x1 operation.

The switcher may be slaved to operate in conjunction with similar switchers for analogue and digital video and audio signals.

This makes the switchers ideally suited to situations where a mixture of analogue and digital signals are present.

Optionally remote control is via a momentary wire per crosspoint (WPX) control connector allowing interface to the IRT-RC1 remote control panel or a telemetry system, or alternatively via an RS232 remote.

The IRT-6170-AAS is designed to fit the openGear® standard 2RU frames which allow a mixture of cards from various manufacturers to be mounted within the same frame.

The DashBoard™ control software is available as a free download.



TECHNICAL SPECIFICATIONS:

Audio inputs:
Number
2 (left and right or Balanced Audio or Balanced AES).
Type
Latching Relay.
Audio Crosstalk
< -90 dB (20 Hz - 20 kHz, input terminated by 600 Ω).

Audio outputs:
Type
Latching Relay.
Number
8 x 2 (left and right or Balanced Audio or Balanced AES).

Control:
Type 1
Momentary wire per crosspoint (WPX) grounding contacts.
(Front edge push button switches or optional remote control panel).

Type 2
openGear® DashBoard® software.

Type 3
RS-232 (9600bps, 8 data bits, No parity, 1 Stop bit, No flow control).

Connectors:
Balanced
Phoenix 3 terminal plug-in blocks.
Control (with remote option)
Plug in 10 pin HE14 dual IDC, DB9 or DB15.

Power Requirements:
Voltage
+ 12 Vdc.
Power consumption
< 1.5 VA.

Other:
Temperature range
0 - 50°C ambient.
Mechanical
Suitable for mounting in an openGear® 2RU rack chassis.
Dimensions (openGear® standard)
33.6 mm x 2U x 325 mm.

Supplied accessories

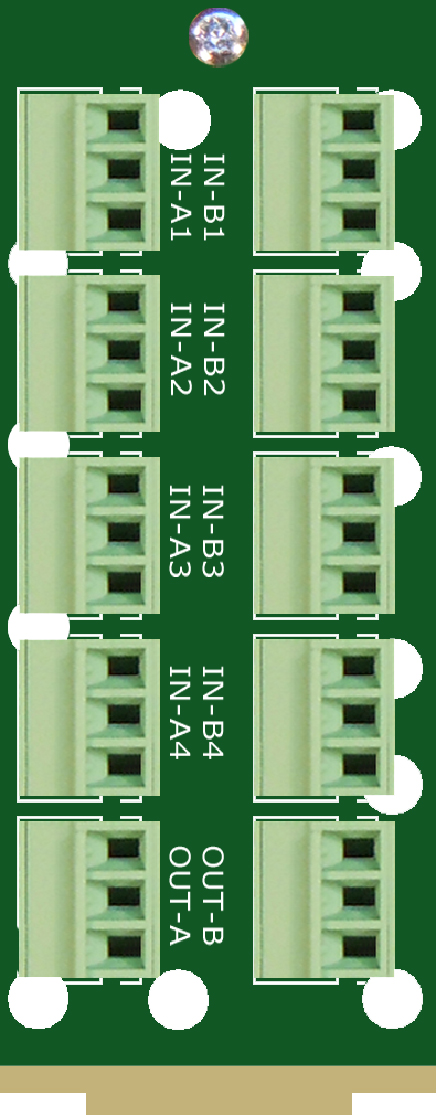

Rear connector assembly.

Ordering
IRT-6170-AAS
IRT-6170-AAS, programmed with DashBoard™ control.
IRT-6170-ARC

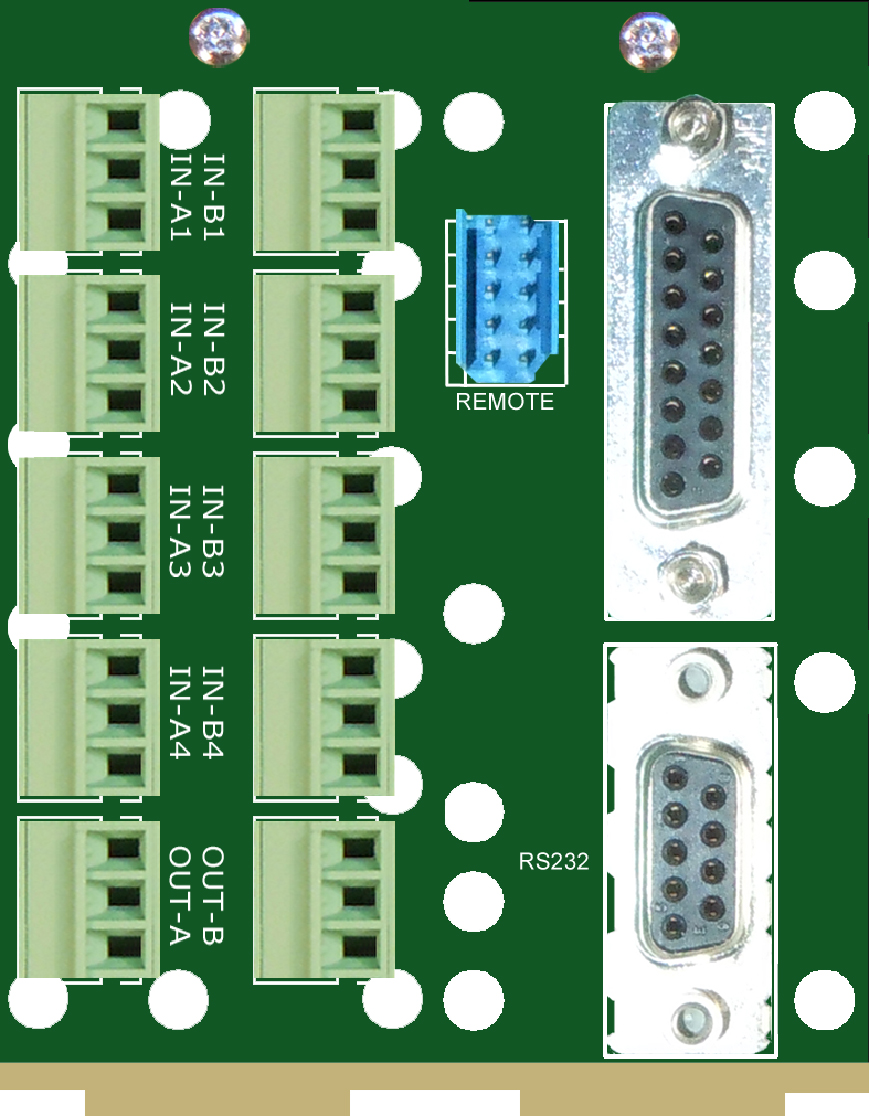

Dual width rear assembly with remote control interfaces.
IRT-RC1
Remote control panel with 8 pushbuttons & tally LED's.
IRT-RP1
1RU 19" rack mounting plate for IRT-RC1 and IRT-RC2 remote control panels.






IRT-6170-AAS                                 IRT-6170-ARC                                       IRT-RC1


IRT-RP1 fitted with IRT-RC1
Due to our policy of continuing development, these specifications are subject to change without notice.
