EOT-4581:   Ethernet to Optical Fibre Transceiver.

FEATURES:

      Suitable for 10/100/1000 Base-T Ethernet.
      Standard RJ-45 CAT-5 Ethernet connection.
      Supports Jumbo frames.
      1000 Base-X optical interface.
      Path lengths up to 30dB1 optical path loss using 9/125µm single mode fibre.
      Optional on-board WDM1,2 optical combiner for use on a single common fibre.
      SNMP software monitoring.

Brochure

User Manual

GENERAL:

The EOT-4581 transceiver module is designed principally for use as a 10/100/1000 Base-T Ethernet to fibre optic transmission link, using 9/125?m single mode fibre, with optical paths losses up to 30dB1.

The EOT-4581 conforms to the IEEE 802.3i, 802.3y and 802.3ab standards for Ethernet over CAT-5 cable, and the IEEE 802.3z (1000 Base-X) standard for Gigabit Ethernet over optical fibre.

The Ethernet port has automatic MDI/MDI X detection, this detects whether the Ethernet interconnect cable is a straight through or cross over type and automatically switches itself to accommodate, and will automatically select the link speed of the connected network (10/100/1000 Mb/s).

The EOT-4581 is also able to support Jumbo frames, which are Ethernet frames with more than 1500 bytes of payload data, up to a maximum frame size of 10,240 bytes.

A fibre transceiver is incorporated on the one card allowing bi directional communication over a pair of SC/PC single mode fibre optic cables.

Optionally a 1310/1550nm WDM1,2 optical combiner can be fitted to allow for combined use on a single fibre.

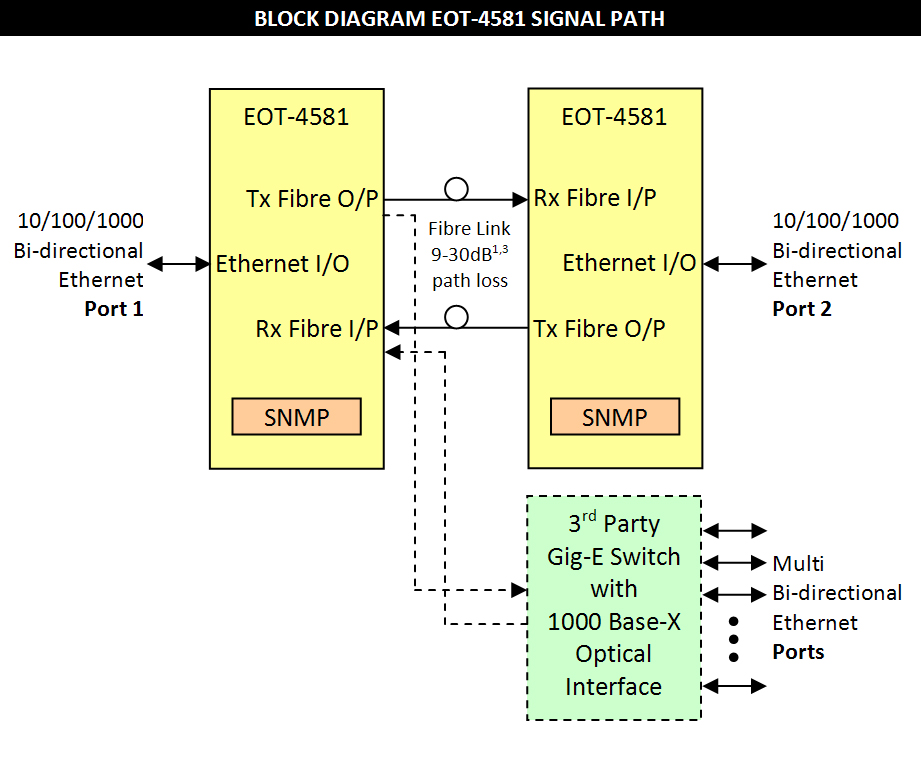

As well as being able to be used as a pair for a point to point fibre link, the EOT 4581's fibre output is 1000 Base X and can be directly interfaced into an Ethernet switch with an equivalent optical interface.

The EOT-4581 is a Eurocard module designed to fit IRT's 1RU frame or IRT's 4000 series frames for use with IRT's SNMP system and may be used alongside any other of IRT's Eurocards.


NOTE:1 With the WDM option fitted, optical path loss is reduced by approximately 2dB.
          2 With the WDM option fitted, when operating as a pair, one EOT-4581 must be fitted with a
             1310nm transceiver and the other a 1550nm transceiver.
          3 An optical attenuator is required for optical path losses <9dB.


TECHNICAL SPECIFICATIONS:

Ethernet:
Type
Standard IEEE 802.3i, 802.3y & 802.3ab.
Data Rate
10/100/1000 Mb/s, automatic.
Maximum Frame Size
10,240 bytes.
Connector
 RJ-45.

Optical:
Type
Standard 802.3z (1000 Base-X).
Data Rate
1000 Mb/s.
Optical Path Loss4,5
9 to 30 dB.
Optical Fibre
 Designed for use with 9/125µm single mode fibre.
Optical Wavelength
1310nm (standard);
1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm, 1610nm available.
Optical Connectors
Dual SC/PC (standard);
Single SC/PC (WDM version).
Optical Output
 0 dBm +4.5/-0 dB DFB laser.
Optical Input
 APD detector (standard), -9 to -30 dBm input level.

Power Requirements:
Voltage
28 Vac CT (14-0-14) or ±16 Vdc.
Power consumption
< 2.5 VA.

Other:
Temperature range
0 - 50°C ambient.
Mechanical
Suitable for mounting in IRT 1RU 1000 series and 3RU 4000 series 19" rack chassis types with input, output and power connections to the rear.

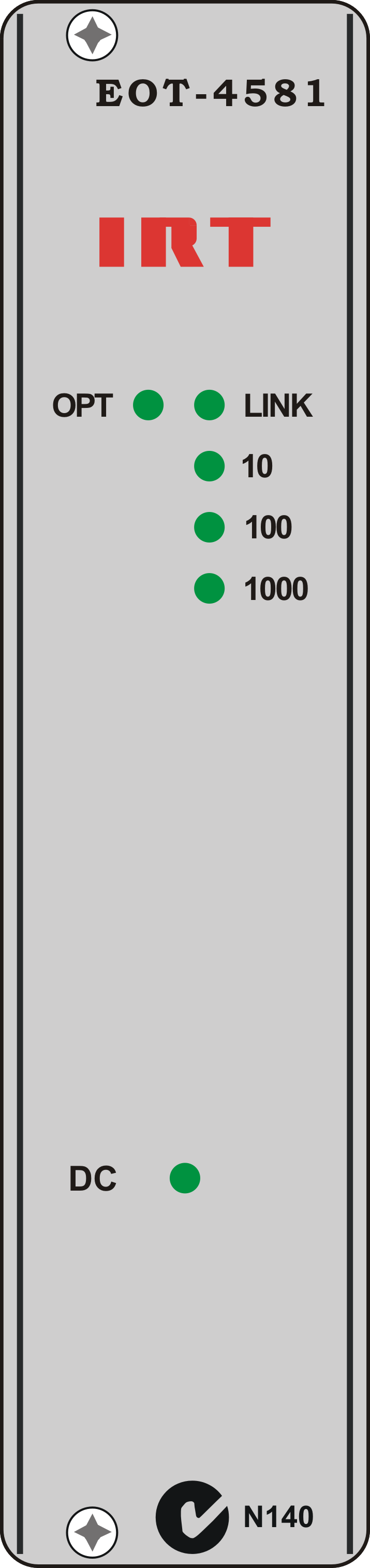

Finish:             Front panel
Grey background, black lettering & red IRT logo.
                       Rear assembly
Detachable silk-screened PCB with direct mount connectors to Eurocard and external signals.
Dimensions
6 HP x 3 U x 220 mm IRT Eurocard.

Ordering:
EOT-4581
Standard EOT-4581 fitted with 1310nm laser.
EOT-4581/xxxx
EOT-4581 fitted with laser other than 1310nm where xxxx = wavelength required (e.g. EOT-4581/1550 is fitted with a 1550nm laser).
EOT-4581/1310/WDM
EOT-4581 fitted with WDM and 1310nm laser.
EOT-4581/1550/WDM
EOT-4581 fitted with WDM and 1550nm laser.

                       NOTE:     4
Optical attenuator required for EOT-4581 when optical path loss is less than 9dB.
                                      5
Optical path loss reduced by approximately 2dB when WDM option fitted.





Standard
WDM Option

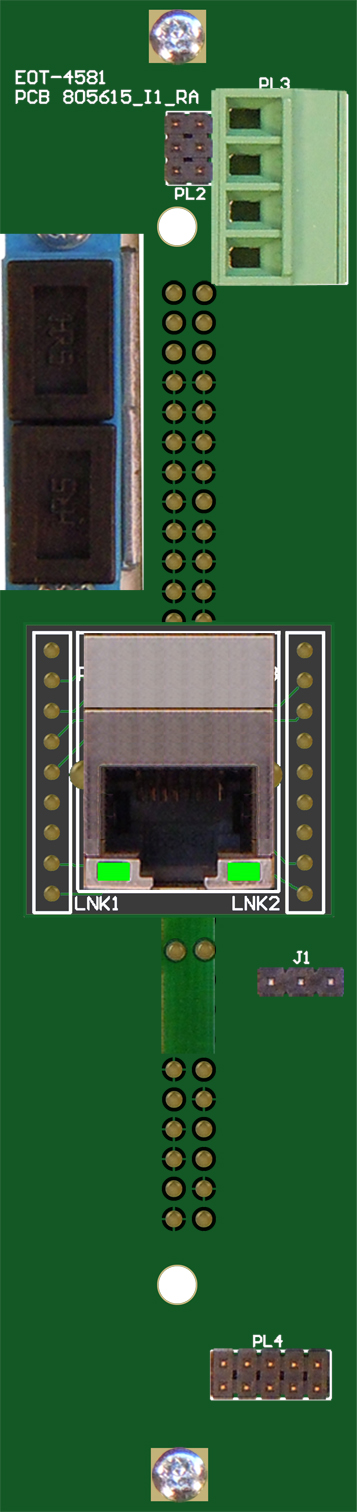

Rear Assembly

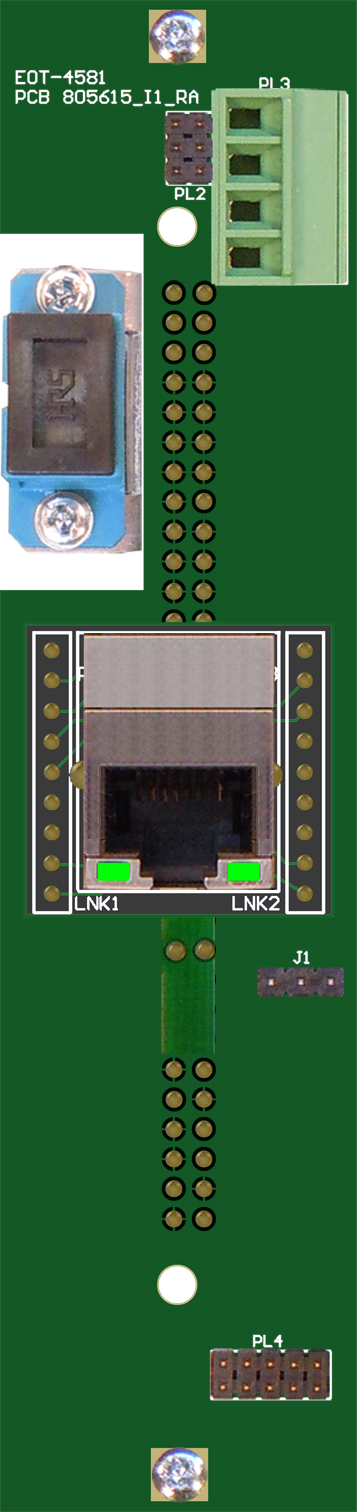

Rear Assembly
