CPS-9001, CPS-1050 & CPS-1052: Remote Control Panels.

FEATURES:

      Choice of 5, 10 or 20 button panels.
      Remote control for Eurocard 3000 series or 1 RU series switchers.
      Multiple control panels with tally of switcher status.
      Audio breakaway function available on CPS 1052.
      Additional wire per crosspoint inputs and tally outputs on CPS 1050 & CPS 1052.

Brochure

User Manual 1
User Manual 2

GENERAL:

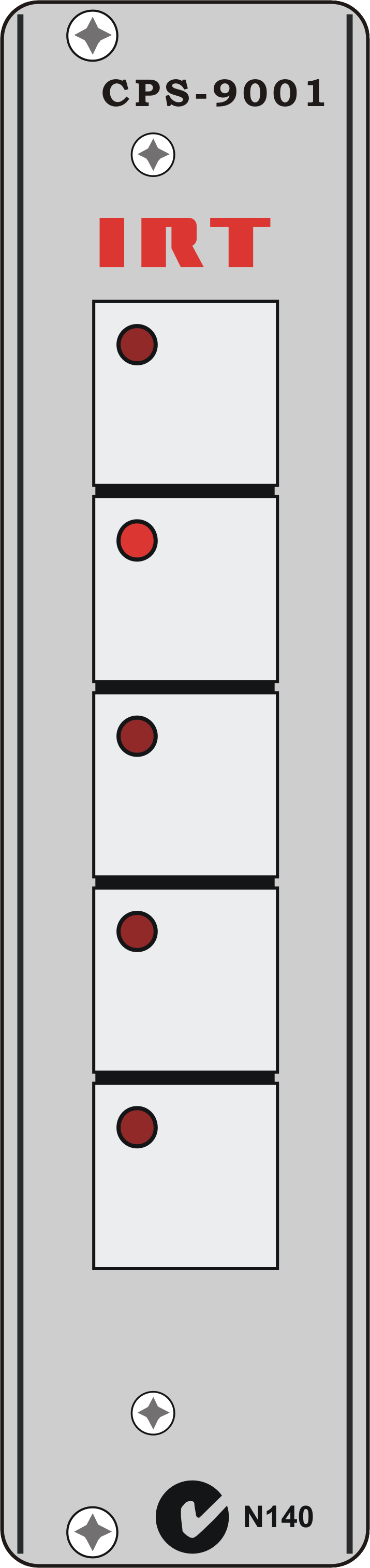

CPS 9001: Controls one or more switchers in the Eurocard 3000 series only. Equipped with 5 push buttons with tally LED's and inserts for labels.

Equipped with on board addressing to designate which bank of 5 is controlled thus allowing formation of 10 x 1 and larger switchers. Multiple panels may be used with tally to each panel.

CPS 1050: May be used to control either Eurocard 3000 series modules or 1 RU 10 x 1 switchers. 10 pushbuttons with tally LED's and label inserts. Equipped with wire per crosspoint inputs and tally outputs for interfacing to external systems.

CPS 1052: Two CPS 1050 switch banks mounted in a single 1 RU panel. May be linked for 20 x 1 or audio breakaway functions.

CPS 1051: Upgrade kit to convert a CPS 1050 into a CPS 1052.

TECHNICAL SPECIFICATIONS:

Compatibility:
CPS-9001
Eurocard 3000 & 4000 series only.
CPS-1050
Eurocard 3000 & 4000 series, 1RU 10x1 Switchers.
CPS-1052
 Eurocard 3000 & 4000 series, 1RU 10x1 Switchers.

Switches:
Type
Momentary action with removable clear cap for legend insert. Red LED indicator in one corner.

Number
CPS-9001
5.
CPS-1050
10.
CPS-1052
 2 x banks of 10. Configurable as 2 x 10 x 1, 20 x 1 or 10 x 1 audio breakaway.

Performance:
Switching
Determined by type of switchers connected, but not more than 25 ms. Timing of connected switchers may be synchronised to a master switcher.

Power consumption
Derived from connected switcher
Up to 4 x CP 9001's may be connected to one switcher without exceeding power rating specified for switcher.
Dimensions
CPS-9001
128 mm x 30 mm front panel. Depth 60 mm front panel to end of PCB. 80 mm clearance including connectors.
CPS-1050
44 mm x 483 mm x 40 mm.
CPS-1052
44 mm x 483 mm x 40 mm.

Mechanical
CPS-9001
May be mounted in a standard IRT Eurocard frame if required, but does not connect to motherboard
CPS-1050
Mounts in standard 19" rack frame.
CPS-1052
Mounts in standard 19" rack frame.

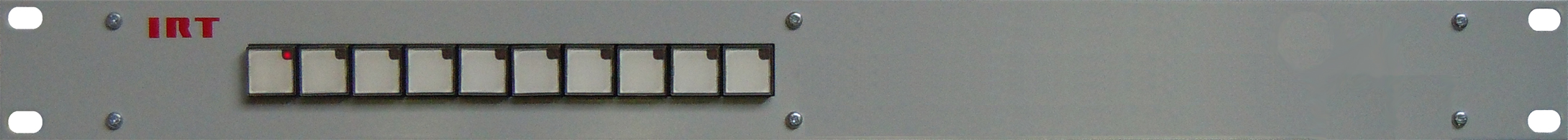

CPS-1050:

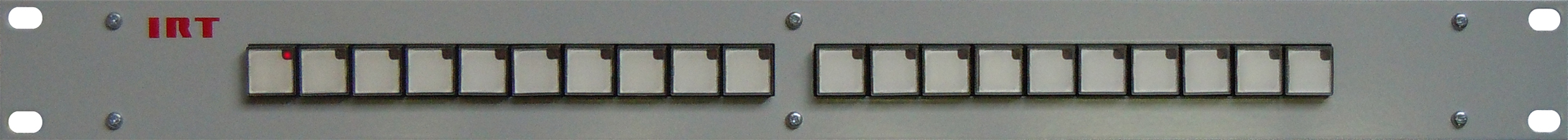

CPS-1052:



Due to our policy of continuing development, these specifications are subject to change without notice.
