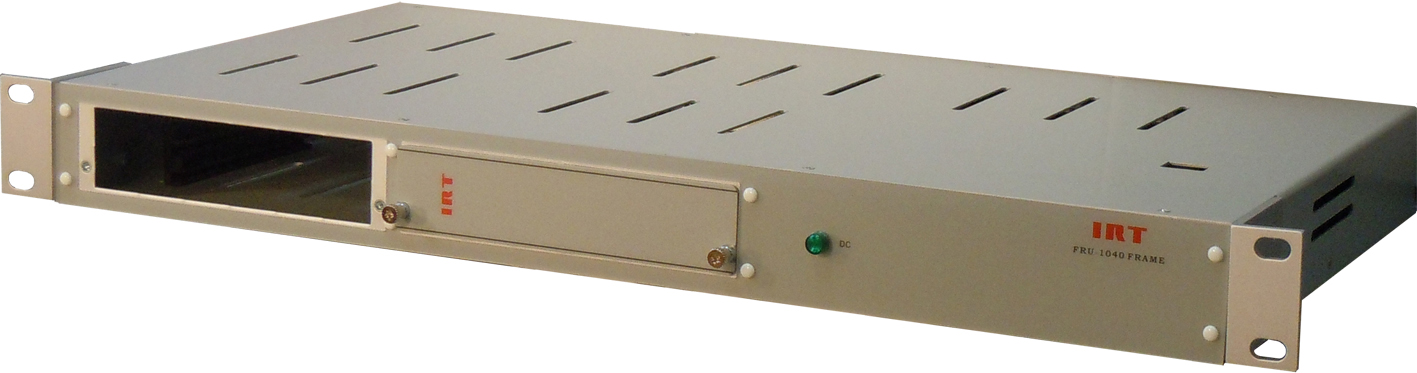

FRU-1040: 1RU Frame with built in DC PSU.

FEATURES:


      Built in DC power supply.
      Suit IRT's current 4000 series Eurocards.
      Take up to two Eurocard modules.
      Optional plug in Simple Network Management Protocol (SNMP) card.

Brochure

User Manual

GENERAL:


The FRU-1040 chassis with integral DC power supply provides a means of mounting either one or two IRT Eurocard modules in a single rack unit, where only a low voltage DC supply is available. This provides a convenient format for situations where only a small number of modules are required and space is at a premium.

The FRU-1040 differs from the AC 1 RU chassis only in the provision of a DC supply input in the range of 20 to 70 Volts instead of the AC mains input. The DC input may be either positive or negative earth.

The FRU-1040 is supplied with blank plates covering the right hand module position to enhance the safety and appearance of the unit when only one card is fitted.

A single power supply only is provided, so if power supply redundancy is required users should select one of IRT's 3 RU frames.


TECHNICAL SPECIFICATIONS:


Power requirements:
Voltage
20 to 70 Vdc positive or negative ground.
(FRU-1040 set up for positive ground as standard).
Power
1 A maximum.
Fusing
500 mA anti surge.

Output:
16 Vdc,
10 VA maximum.

Connectors:
DC power input
Klippon MK1/3 termination block.

Other:
Temperature range
0 - 50°C ambient.
Mechanical
1 RU (482 mm x 44.5 mm) standard 19" rack frame.
Suitable for mounting in standard 19" racks.
Dimensions
482 x 44.5 x 238 mm (frame empty).
Clearance width 442 mm.
Finish:             Front panel
Grey background, black lettering and red IRT label.
                       Rear assembly
Aluminium with silk screened black lettering.

Optional Accessories:
CDM-1000
Simple Network Management Protocol (SNMP) controller card for use with 4000 series Eurocards fitted with SNMP capability.








Due to our policy of continuing development, these specifications are subject to change without notice.
