DAC-4412:   AES/EBU DA with Analogue Monitoring.

FEATURES:


      2 balanced AES, 2 unbalanced AES and 2 analogue stereo outputs.
      24 bit digital to analogue processing.
      75 and 110 Ohm inputs.

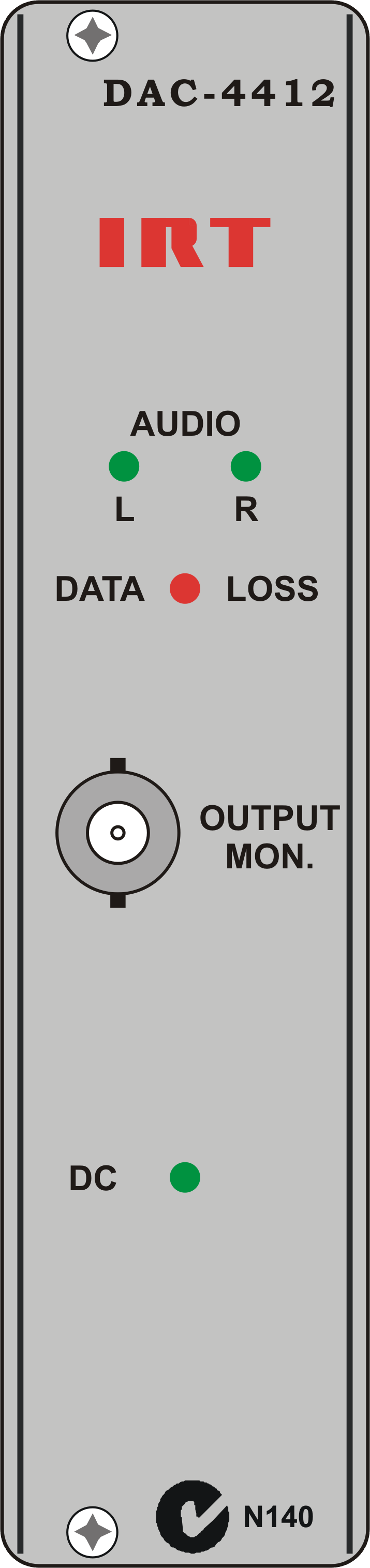

      Front panel digital monitoring output.
      Front panel audio level and AES error indications.
      All inputs and outputs transformer coupled.
      Digital circuit re-shapes output and restores level.
      No cable compensation adjustments required.
      Optional plug-in SNMP monitoring module.

Brochure

User Manual

GENERAL:

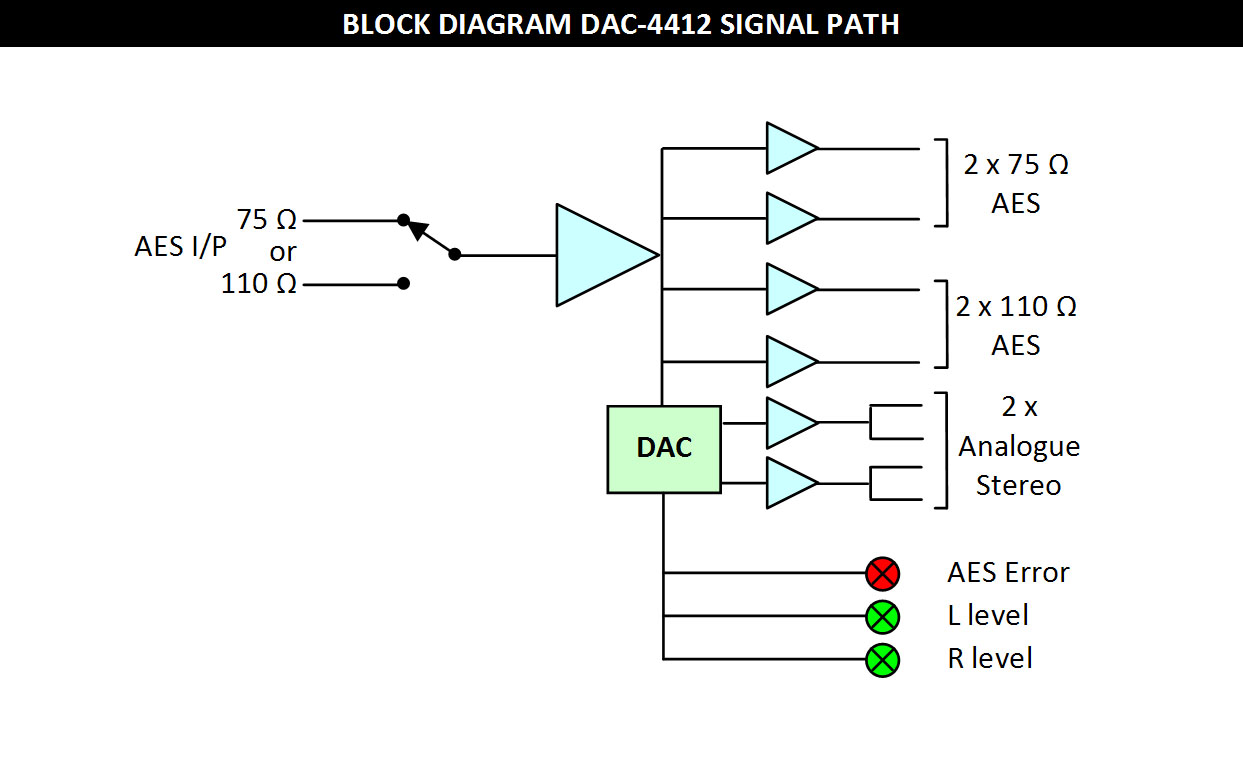

The DAC-4412 is designed to provide AES/EBU digital audio conversion to analogue stereo format. Four AES outputs (two balanced 110 Ohm and two unbalanced 75 Ohm) are provided for through signal and monitoring purposes.

The DAC-4412 may be used with AES digital signals at 48 kHz.

The digital circuitry of the DAC-4412 restores the signal rise and fall times and output level without the need to manually adjust gain and compensation controls.

The digital converter monitors the AES signal for errors, and lights an alarm indication on the front panel.

LEDs are also provided to indicate the analogue output level. These are user adjustable, but factory set to a -40 dBFS threshold.

Link settings allow the analogue audio output to be muted on loss of digital input.

An optional SNMP (Simple Network Management Protocol) plug-in module is available for remote monitoring when used in conjunction with IRT's frame fitted with SNMP capability.

The DAC-4412 is designed to fit IRT's standard Eurocard frames and may be used alongside any other of IRT's analogue or digital Eurocards.


TECHNICAL SPECIFICATIONS:


Inputs:
Number
2.
Type
1 x 110 Ω balanced, or
1 x 75 Ω unbalanced, selected by link on PCB.
Format
AES3-1992 standard.
Input level
200 mVp-p minimum.
Cable length
> 500 m 75 Ω (Belden 8281),
> 200 m 110 Ω (AES digital high quality shielded pair).

Outputs - Digital:
Number
4.
Type
2 x 75 Ω unbalanced > 1 Vp-p, and
2 x 110 Ω balanced > 3 Vp-p.
Monitoring
1 x 75 Ω unbalanced.
Format
AES3-1992 standard.

Outputs - Analogue:
Number
2 stereo, mutable by link settings on loss of input.
Type
40 Ω balanced.

Performance:
Frequency
48 kHz.
Rise & fall times
< 20 ns.
Level for full code
+24 dBu (variable by internal factory preset).
Frequency response
0.1 dB 50 Hz to 15 kHz;
0.2 dB 15 kHz to 20 kHz.
THD+N
< 0.025%.
Noise
-100 dBFS ('A' weighted with idle channel, digital input all zeros).
Linearity
< 0.5 dB at -90 dBFS.
De-emphasis
Automatic from channel status.
Mute level
60dB down from peak output.

Power Requirements:
Voltage
28 Vac CT (14-0-14) or ±16 Vdc.
Power Consumption
< 6VA.

Connectors:
Balanced
Phoenix 3 terminal plug-in blocks.
Unbalanced
BNC.

Other:
Temperature range
0 - 50°C ambient.
Mechanical
Suitable for mounting in IRT 19" rack chassis with input, output and power connections on the rear panel.
Finish:             Front panel
Grey background, black lettering & red IRT logo.
                       Rear Panel

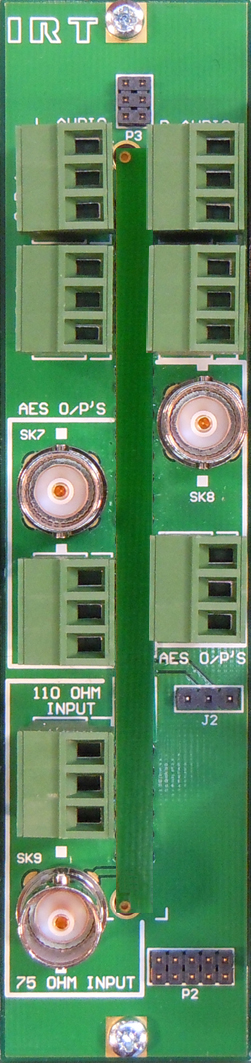

Detachable silk-screened PCB with direct mount connectors to Eurocard and external signals.
Dimensions
6 HP x 3 U x 220 mm IRT Eurocard.
Supplied accessories
Rear connector assembly including matching plugs for balanced connections.
Optional accessories
SMU-4000 plug in SNMP Management Information Base (MIB) module.







Due to our policy of continuing development, these specifications are subject to change without notice.
