AVA-3900:   Triple Video Distribution Amplifier.

FEATURES:


      Gain reserve.
      DC coupled.
      Longitudinal hum reduction.
      Cable equalisation.
      Three outputs.
      Terminating inputs.
      Suitable for standard and wideband analogue video signals.

Brochure

User Manual

APPLICATIONS:


      Line equalising amplifiers.
      Component distribution amplifier.
      Isolation of multiple monitoring points.

GENERAL:

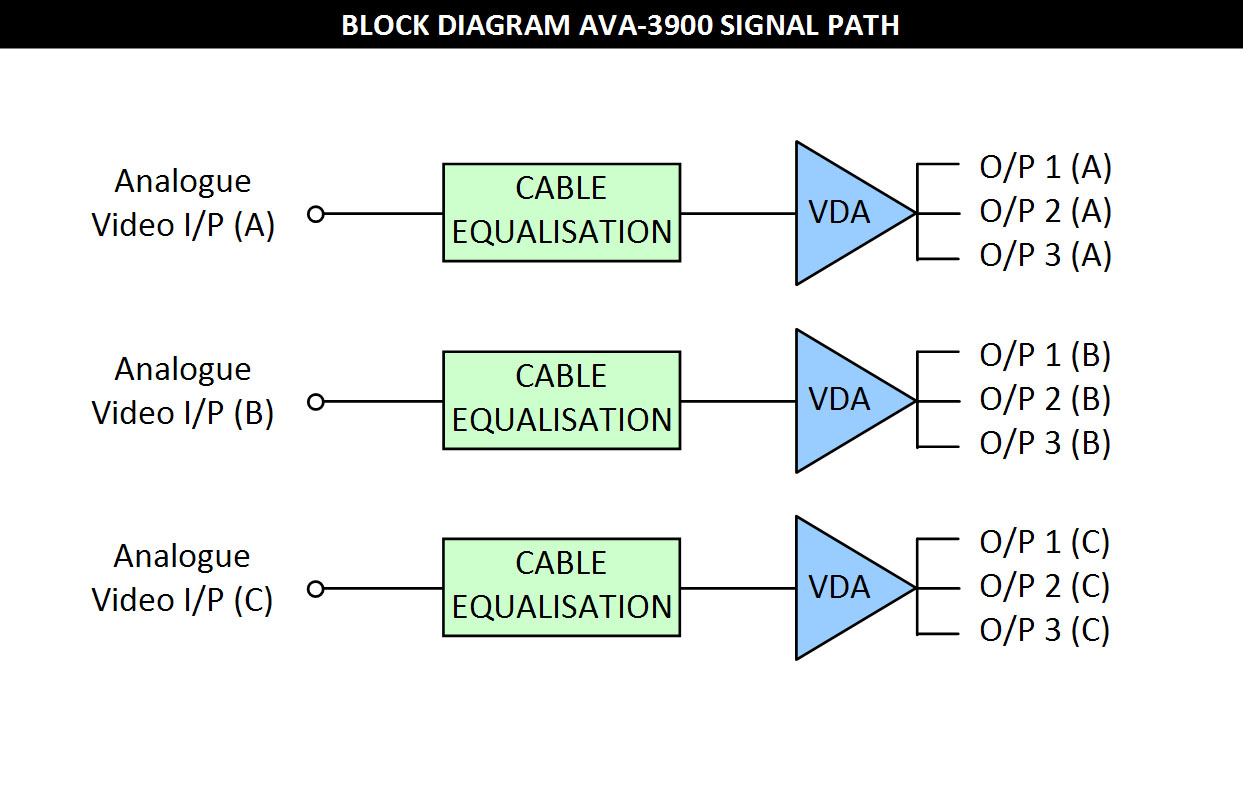

The AVA-3900 is a high performance Eurocard video amplifier package containing three separate amplifiers.

Gain and cable equalisation controls are accessible on the front panel and the longitudinal hum reduction adjustment is an internal pre set potentiometer.

The cable equaliser characteristics are pre set to compensate for a maximum of greater than 250 metres of 75 Ω video cable. This can be changed to accommodate different cable types.

The AVA-3900 is a standard IRT Eurocard and is compatible with our other Eurocard products.

Two AVA-3900 Eurocards may be mounted in the IRT 1 RU chassis providing 6 VDA's in 1 RU.

Uses for the AVA 3900 include:

      Adjustment of gain and frequency response of multiple video signals at a central location.
      Isolation of multiple monitoring points.
      RGB / YUV signal distribution or monitoring.



TECHNICAL SPECIFICATIONS:


Inputs:
Type
AC coupled.
Number
3 x Composite PAL or NTSC, standard or wide band, or
1 x Component, RGB, YUV, YPbPr.
Input signal range
0.7 to 1.5 V p p video signals.
Equalisation
Continuously variable front panel control.
250 m of 75 Ω cable (Belden 8281 or equivalent) for standard analogue;
50 m of 75 Ω cable (Belden 8281 or equivalent) for wide band analogue.
Connectors
BNC.
Impedance
Ground isolated, terminating into 75 Ω.

Outputs:
Type
DC coupled.
Number
3 (x 3).
Connectors
BNC.
Impedance
75 Ω source terminated.
Maximum output
2.0 V p p video.

Performance:
Gain
Adjustable from -4 dB to +6 dB. Set by front panel control.
Frequency response
0.1 dB to 10 MHz;
0.2 dB to 50 MHz;
-3dB > 100 MHz.
Differential gain
< 0.2% at 1V p p, 4.43MHz.
Differential phase
< 0.2 at 1V p p, 4.43MHz.
Longitudinal hum reduction
With input grounds isolated better than 40 dB at 50 Hz (internal pre set adjustment).
Crosstalk
< -75 dB (between modules).
Transit time
< 22° at 4.43 MHz.
Cable equalisation
Up to 300 m, for Beldin YR23769 cable.

Power Requirements:
Voltage
28 Vac CT (14-0-14) or ±16 Vdc.

Other:
Temperature range
0 - 50°C ambient.
Mechanical
Suitable for mounting in IRT 19" rack chassis with all connections at the rear.

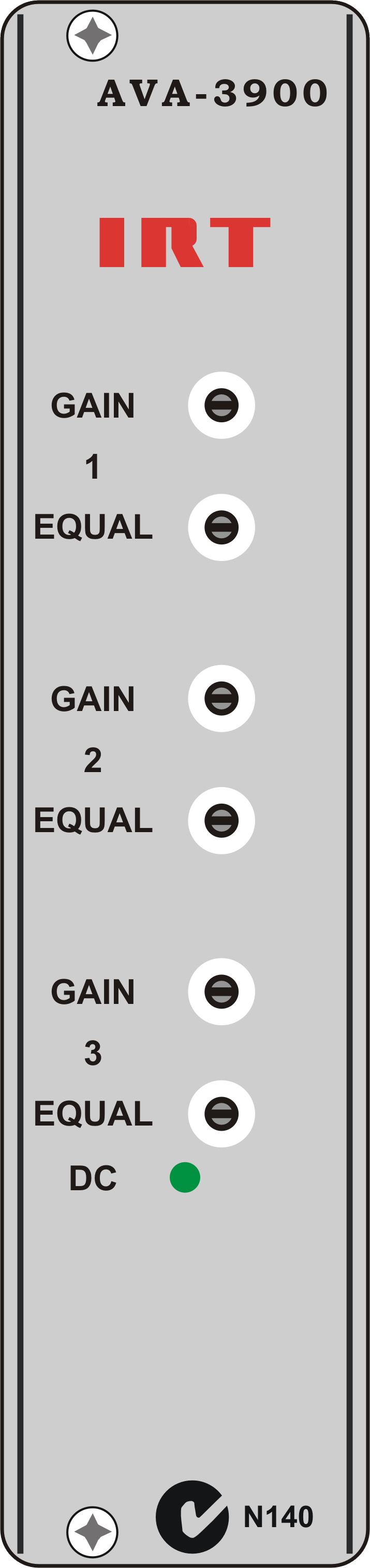

Finish:             Front panel
Grey background, black lettering & red IRT logo.

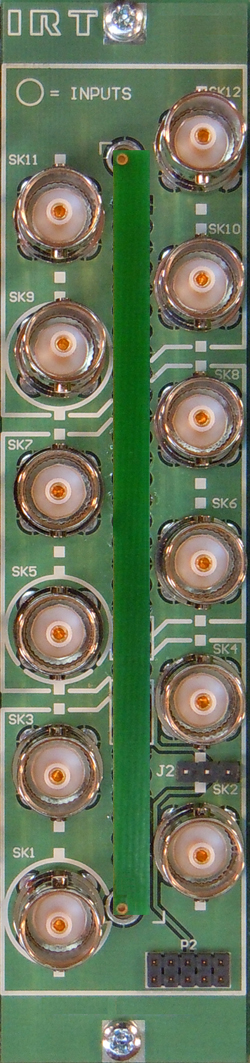

                       Rear Panel
Detachable silk-screened PCB with direct mount connectors to Eurocard and external signals.
Dimensions
6 HP x 3 U x 220 mm IRT Eurocard.







Due to our policy of continuing development, these specifications are subject to change without notice.
